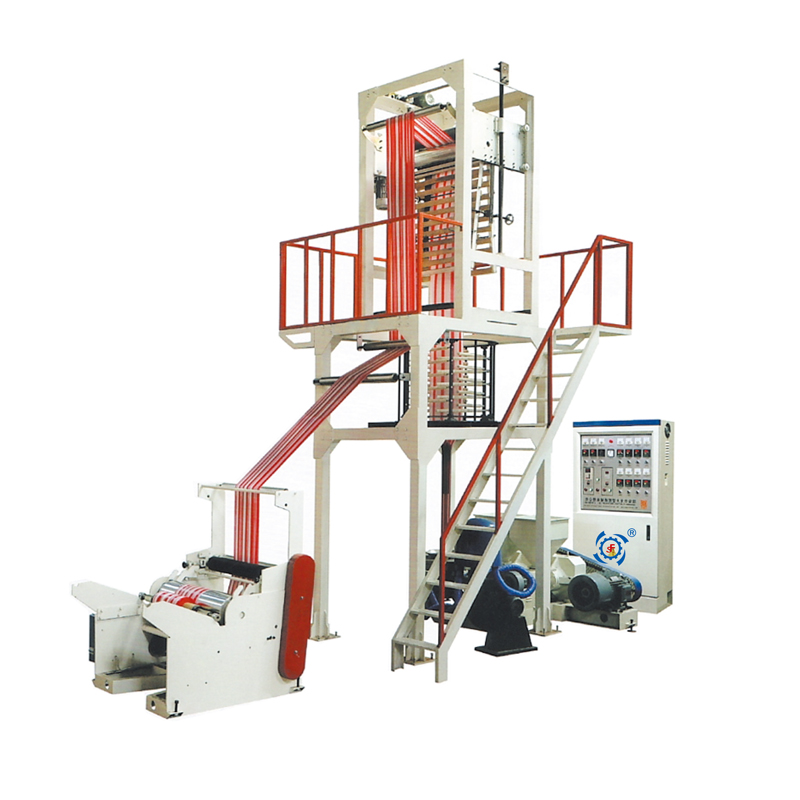

SJ-C系列雙色彩條吹膜機

SJ-C系列雙色彩條吹膜機

SJ-C Series Double Colors Film Blowing Machine

性能及特點(Performance and Characteristics

用于吹制LDPE、HDPE等塑料復合膜,廣泛應用于液體包裝、印刷基材、出口產品包裝、工業品包裝以及食品、水果、服裝、紡織品、日用品等民用工業品包裝。

此機組的機筒、螺桿均采用優質合金鋼,經氮化和精密加工,具有硬度和耐腐蝕性。卷曲裝置采用力矩電機,可保持適宜的張力,收卷整齊、換卷方便??筛鶕?jù)不同物料的工藝要求在一定范圍內自由調節使用,并附有插板機構,能制作背心袋。并且不用印刷就能達到彩色效果。

It is used for blowing LDPE,HDPE color striped plastic film,etc.Which are widely used for packing food,fruit,garments,textile,daily necessities and other civil and industrial products.The cylinder and the screw stem of model SJ-45D×2 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.600 auxiliary machine can be freely adjusted within the limits of 600mm according to the technological requirement of different materials,and has been fitted with a plug in plate mechanism for making vest bag,.The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.And not printed will be able to achieve the color effect.



型號

Model

SJ-C45X2/FM600

SJ-C50X2/FM800

SJ-C55/FM1000

螺桿直徑

Diameter   of screw

Φ45X2mm

Φ50X2 mm

Φ55   X2 mm

薄膜折徑

Reduced   dimmeter of filmmm

100-600mm

200-800mm

300-1000mm

薄膜單面厚度

Single-sided   Thickness of filmmm

0.01-0.10 mm

0.01-0.10   mm

0.01-0.10   mm

擠出量

Max   extrusion Outputkg/hr

35kg/h

50/h

65   kg/h

長徑比

Aspect   ratio

26:1

26:1

26:1

主機功率

Power   of main motor kw

15kw

18.5kw

22kw

牽引功率

Heating   Powerkw

1.1 kw

1.1   kw

1.5kw

外形尺寸

Outline   dimension LXWXH(mm)

4800X1900X4100

4800X2100X4700

5500X2300X4900

機重

WeightT

2T

2.5T

3T
